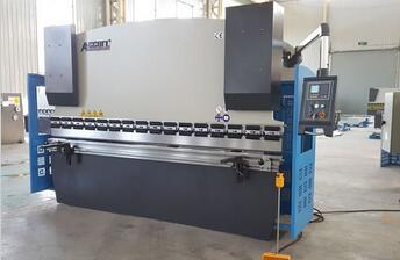

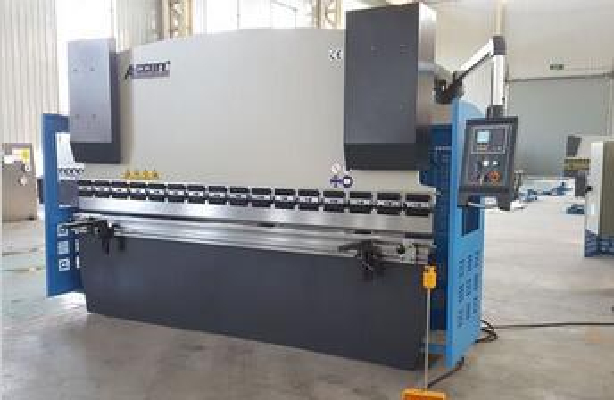

Main performance characteristics of the whole machine:

1, the frame adopts steel overall welding structure, internal stress eliminated by normalizing and high frequency vibration, ensure the overall accuracy of the machine, with excellent rigidity, excellent anti distortion, anti tilt capability. The worktable thickening, thickening of the slider, so the machine has high rigidity, so when bending slider work Taiwan has little deformation and straightness and angle of workpiece with excellent consistency.

2, referring to the German DIN55222T2-80 standard design.

3, the hydraulic system uses the integrated control system, reduces the pipeline installation, uses the import seal ring, enhanced the work stability of the machine tool, the appearance is beautiful and simple.

4, the main oil cylinder piston machine using space technology - surface nickel phosphorus treatment, the hardness is HRC60, the guide sleeve and the piston relative motion with a zinc base alloy self lubrication, the cylinder is in good working condition for a long time.

5, using the torsion shaft synchronization, mechanical block, reliable, economic, high precision.

6, after the distance of the block, the upper slider stroke by CNC system automatic adjustment, can also be manually adjusted to facilitate the operation.

7, the upper die is equipped with a winding compensation mechanism.

Two, the function of the numerical control system:

Taiwan Taida touch screen Chinese CNC system (or Holland Delem numerical control system):

1, with one-way and two-way positioning function, can effectively eliminate the screw gap.

2, with concessions selection function, avoid blocking device and workpiece interference, reduce wear, improve the positioning accuracy.

3, it has the function of automatic or manual searching reference point, which has the function of power off position memory, and can protect the parameters, locations and procedures.

4, with multi-step processing programming function, can achieve more than one step to move, the completion of multi-step parts processing, improve production efficiency.

5, with an axis servo motor automatically control the slider up and down stroke adjustment, the other axis servo motor control after the block.

Three, the main configuration:

1, the main oil cylinder seals by Japanese valqua company.

2, the main part of the electrical box by the French production of Schneider.

3, all the hydraulic system with cartridge valve control, hydraulic main original using the German HOERBIGER company

4, the hydraulic pump uses aerospace standard low noise internal gear pump.

5, specializes in manufacturing factory processing cylinder, the sealing ring imported, overcome the phenomenon of oil leakage.

6, the use of Taiwan HIWIN linear guide rail and ball screw.

7, the hydraulic system uses the German EMB pipe joint to ensure the stability of the hydraulic system in the long run.

8, select Japan's Panasonic or MITSUBISHI servo drive and servo motor.

Four, CNC system (optional):

I

DA41 is a control system using servo control technology;

4.7''high brightness LCD screen, including the Chinese language interface;

Mold parameter setting, bending angle programming;

Can store 100 procedures, 25 procedures of each program; selecting programmable processing, counting, power and memory, can make metric / inch conversion

==================================================================

I

MD-20 application of servo numerical control technology;

Automatic positioning of electric rear stopper and upper slider;

Full Chinese operation interface, intuitive and simple;

Multi - channel automatic operation, processing the number of automatic counting;

The block automatic concession.

================================================================

I

E21 control system using frequency conversion control technology;

Automatic positioning of electric rear stopper and upper slider;

One-way positioning to eliminate the gap between the screw drive;

Multiprogramming automatic operation, automatic counting, the number of processing power and memory, metric / inch conversion.

Five, the main technical parameters:

WC67K series hydraulic plate bending machine can be equipped with various types of special CNC system: DA41, E21 , MD20 etc.; having multiple step programming function, can realize multi step program automatically, continuous positioning, implementation of rear stopper and slider position accurate automatic adjustment; bending counting,

Real time display of the number of processing power, power memory, the block slider position, procedures and parameters; after the block material imported ball screw and linear guide, to ensure that the positioning accuracy of the post, machining accuracy is higher.

Can choose to configure a higher numerical control system: including Holland DelemDA-51, DA-56, DA-65w, DA-66e, DA-69

Model of machine tool

Male weigh strength

(KN)

Table length

(mm)

Force column spacing (mm)

Throat depth (mm)

Slide stroke (mm)

Maximum opening height (mm)

Main motor power (Kw)

Weight approximately (Kg)

Size (length * width * height) mm

WC67K-40T/2200 hydraulic plate bending machine

Four hundred

Two thousand and five hundred

One thousand eight hundred and fifty

Two hundred and thirty

One hundred

Three hundred and twenty

Five point five

Two thousand seven hundred and fifty

2200 * 1200 * 1910

WC67K-40T/2500 hydraulic plate bending machine

Four hundred

Three thousand and two hundred

One thousand eight hundred and fifty

Two hundred and thirty

One hundred

Three hundred and twenty

Five point five

Three thousand

2500 * 1200 * 1910

WC67K-50T/2500 hydraulic plate bending machine

Five hundred

Two thousand and five hundred

One thousand eight hundred and fifty

Two hundred and thirty

One hundred

Three hundred and twenty

Five point five

Three thousand and four hundred

2500 * 1210 * 2000

WC67K-63T/2500 hydraulic plate bending machine

Six hundred and thirty

Two thousand and five hundred

One thousand and nine hundred

Two hundred and fifty

One hundred

Three hundred and twenty

Five point five

Four thousand

2500 * 1300 * 2210

WC67K-63T/3200 hydraulic plate bending machine

Six hundred and thirty

Three thousand and two hundred

Two thousand five hundred and sixty

Two hundred and fifty

One hundred

Three hundred and twenty

Five point five

Four thousand and eight hundred

3200 * 1300 * 2210

WC67K-80T/2500 hydraulic plate bending machine

Eight hundred

Two thousand and five hundred

One thousand nine hundred and ninety

Three hundred

One hundred

Three hundred and twenty

Seven point five

Five thousand and seven hundred

2500 * 1400 * 2300

WC67K-80T/3200 hydraulic plate bending machine

Eight hundred

Three thousand and two hundred

Two thousand five hundred and sixty

Three hundred and twenty

One hundred

Three hundred and fifty

Seven point five

Six thousand and twenty

3200 * 1500 * 2300

WC67K-80T/4000 hydraulic plate bending machine

Eight hundred

Four thousand

Three thousand

Three hundred and twenty

One hundred

Three hundred and fifty

Seven point five

Seven thousand

4000 * 1500 * 2400

WC67K-100T/2500 hydraulic plate bending machine

One thousand

Two thousand and five hundred

Two thousand and twenty

Three hundred and twenty

One hundred and twenty

Three hundred and twenty

Seven point five

Six thousand

2500 * 1600 * 2400

WC67K-100T/3200 hydraulic plate bending machine

One thousand

Three thousand and two hundred

Two thousand and six hundred

Three hundred and twenty

One hundred and twenty

Three hundred and seventy

Seven point five

Six thousand and five hundred

3200 * 1600 * 2600

WC67K-100T/4000 hydraulic plate bending machine

One thousand

Four thousand

Three thousand

Three hundred and twenty

One hundred and twenty

Three hundred and seventy

Seven point five

Eight thousand

4000 * 1600 * 2700

WC67K-125T/3200 hydraulic plate bending machine

One thousand two hundred and fifty

Three thousand and two hundred

Two thousand five hundred and eighty

Three hundred and twenty

One hundred and twenty

Three hundred and seventy

Seven point five

Six thousand and eight hundred

3200 * 1600 * 2600

WC67K-125T/4000 hydraulic plate bending machine

One thousand two hundred and fifty

Four thousand

Three thousand

Three hundred and twenty

One hundred and twenty

Three hundred and seventy

Seven point five

Eight thousand and two hundred

4000 * 1600 * 2700

WC67K-160T/3200 hydraulic plate bending machine

One thousand and six hundred

Three thousand and two hundred

Two thousand and six hundred

Three hundred and twenty

Two hundred

Four hundred and sixty

Eleven

Eleven thousand

3200 * 1700 * 2700

WC67K-160T/4000 hydraulic plate bending machine

One thousand and six hundred

Four thousand

Three thousand

Three hundred and twenty

Two hundred

Four hundred and sixty

Eleven

Twelve thousand

4000 * 1700 * 2800

WC67K-160T/5000 hydraulic plate bending machine

One thousand and six hundred

Five thousand

Four thousand

Three hundred and twenty

Two hundred

Four hundred and sixty

Eleven

Sixteen thousand and five hundred

5000 * 1900 * 3100

WC67K-200T/3200 hydraulic plate bending machine

Two thousand

Three thousand and two hundred

Two thousand and five hundred

Three hundred and twenty

Two hundred

Four hundred and sixty

Eleven

Twelve thousand and five hundred

3200 * 1950 * 2800

WC67K-200T/4000 hydraulic plate bending machine

Two thousand

Four thousand

Three thousand

Three hundred and twenty

Two hundred

Four hundred and sixty

Eleven

Thirteen thousand

4000 * 1950 * 2800

WC67K-200T/5000 hydraulic plate bending machine

Two thousand

Five thousand

Four thousand

Three hundred and twenty

Two hundred

Four hundred and sixty

Eleven

Sixteen thousand and five hundred

5000 * 1950 * 3000

WC67K-200T/6000 hydraulic plate bending machine

Two thousand

Six thousand

Five thousand

Three hundred and twenty

Two hundred

Four hundred and sixty

Eleven

Twenty thousand

6000 * 1950 * 3300

WC67K-250T/3200 hydraulic plate bending machine

Two thousand and five hundred

Three thousand and two hundred

Two thousand and five hundred

Four hundred

Two hundred and fifty

Five hundred and ninety

Eighteen point five

Twenty thousand

3250 * 2000 * 3200

WC67K-250T/4000 hydraulic plate bending machine

Two thousand and five hundred

Four thousand

Three thousand

Four hundred

Two hundred and fifty

Five hundred and ninety

Eighteen point five

Twenty-three thousand

4000 * 2000 * 3400
